Description

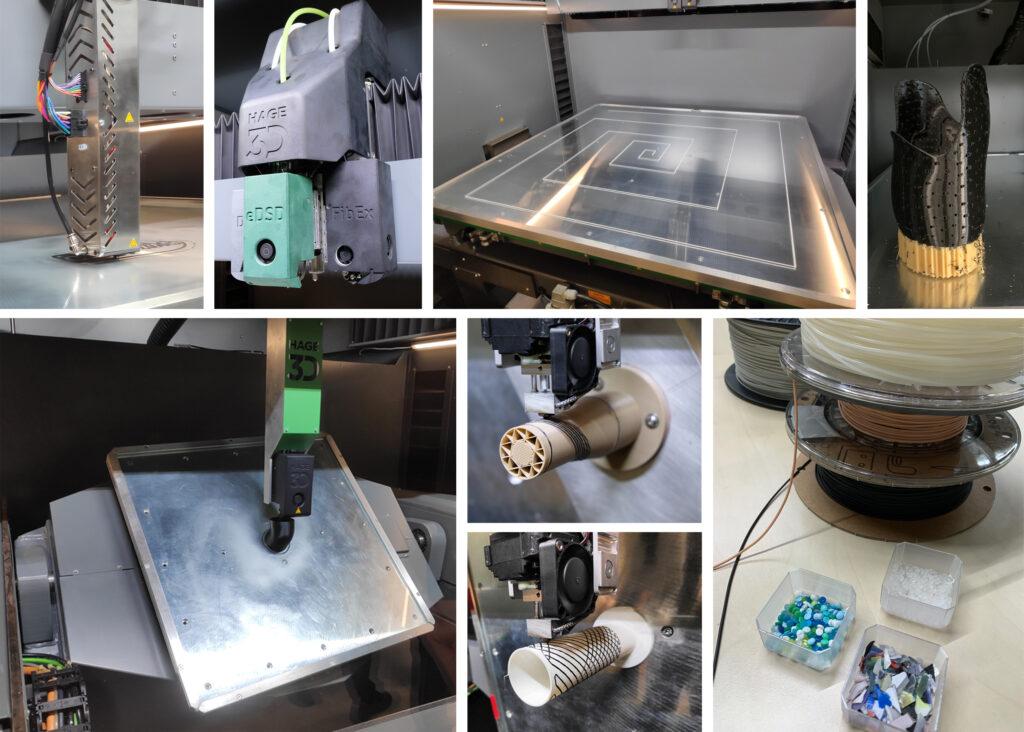

HAGE 3D-1750L-B is a multi-module printer which allows for printing either with filament or pellet materials as well as with traditional 3D-printing or 5-axis printing. The large build plate (1.2m x 1.2m for 3D-printing or 0.5m x 0.5m for 5D-printing), gives the possibility to print bigger parts at once, as e.g. exoskeletons. The 5D-printing can improve prints by placing fibres in such directions that they can efficiently transfer loads, thus increase mechanical properties of the part. Moreover, the high nozzle temperature allows printing high performance polymers such as Polyetheretherketone (PEEK).
Parameters
- 3D/5D printing process: Fused Filament Fabrication (FFF), Pellet Additive Manufacturing (PAM), continuous-fibre printing
- Number of extruders: 1 or 2
- 3D Print volume: 1200 mm x 1200 mm x 1000 mm
- 5D Print volume: 500 mm x 500 mm x 400 mm
- Maximum nozzle temperature: 450 °C
- Maximum print bed temperature: 100 °C
- Printing room temperature: 80 °C
- Layer height: 50 μm – 6 mm
