Description

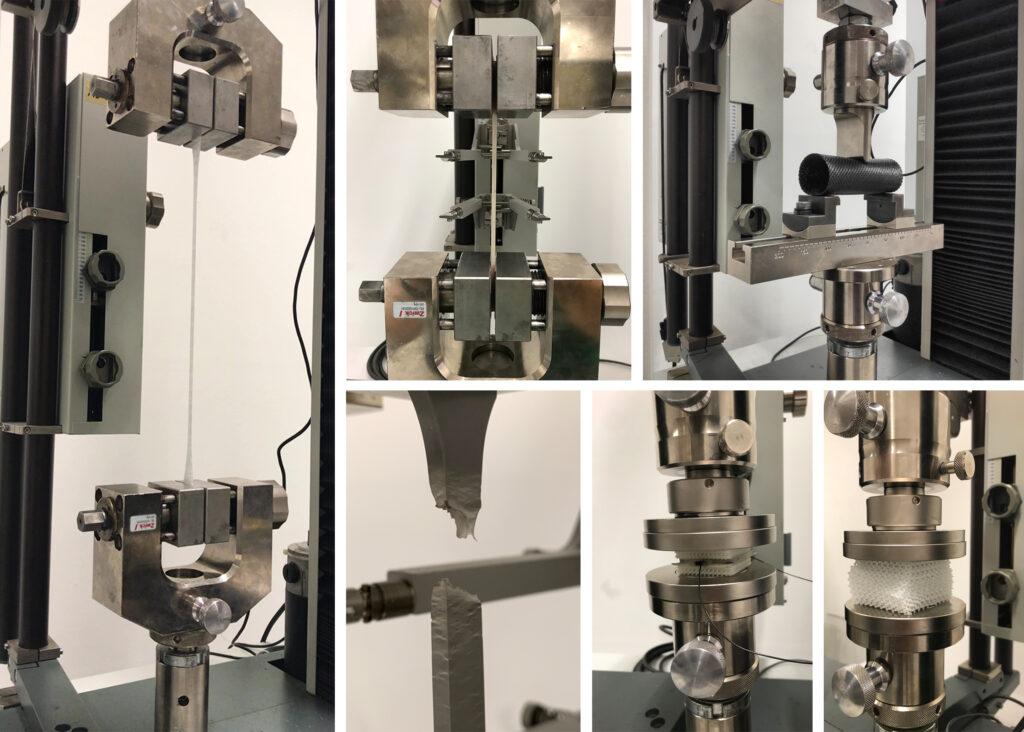

Zwick Roell Z020 universal testing machine is a table-top testing machine for static tensile, flexure and compression tests. The specimen grips and test tools can be changed using the simple plug-in system, allowing different tests to be carried out on the same machine.
Equipment
- Wedge grips for tensile testing
- Extensometer with sensor arms for tensile testing
- 3-point flexure test kit (ISO 178 & ASTM D790 plastics, ISO 14125 fiber reinforced plastics)
- 4-point flexure test kit (ISO 14125)
- Compression kit ø 90 mm
Parameters
- Load range up to 20 kN
- Test area: height 1055 mm, width 440 mm
